Carbide Burrs Range
Expert

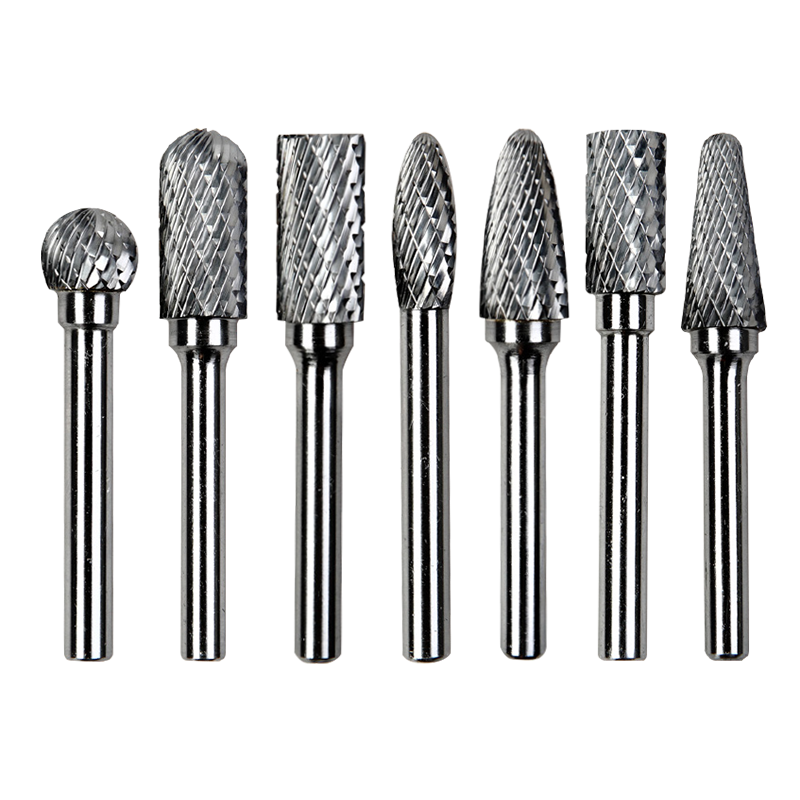

Carbide Burrs
Why the Expert?
Manufactured with High Performance Tungsten Carbide and Double Cut (also known as Cross Cut) design to provide aggressive stock removal and reduced chips for precise deburring. Suitable for use on a variety of Materials such as Steels, Alloys and Cast Iron.
| Specification | Shape | Spindle Diameter (mm) | Pack Qty | Product Code |
|---|---|---|---|---|
| Cylindrical No End Cut | A | 3.0mm | 1 | CBA031403DC |
| Cylindrical No End Cut | A | 6.0mm | 1 | CBA082006DC |
| Cylindrical No End Cut | A | 6.0mm | 1 | CBA102006DC |
| Cylindrical with End Cut | B | 6.0mm | 1 | CBB031403DC |
| Cylindrical with End Cut | B | 6.0mm | 1 | CBB061606DC |
| Cylindrical with End Cut | B | 6.0mm | 1 | CBB102006DC |
| Cylindrical with End Cut | B | 6.0mm | 1 | CBB122506DC |
| Cylindrical Ball Nose | C | 3.0mm | 1 | CBC031403DC |
| Cylindrical Ball Nose | C | 3.0mm | 1 | CBC061303DC |
| Cylindrical Ball Nose | C | 6.0mm | 1 | CBC061606DC |
| Cylindrical Ball Nose | C | 6.0mm | 1 | CBC082006DC |
| Cylindrical Ball Nose | C | 6.0mm | 1 | CBC102006DC |
| Cylindrical Ball Nose | C | 6.0mm | 1 | CBC122506DC |
| Ball | D | 3.0mm | 1 | CBD030303DC |
| Ball | D | 6.0mm | 1 | CBD100906DC |
| Ball | D | 6.0mm | 1 | CBD121206DC |
| Ball Nose Tree | F | 3.0mm | 1 | CBF031203DC |
| Ball Nose Tree | F | 3.0mm | 1 | CBF061303DC |
| Ball Nose Tree | F | 6.0mm | 1 | CBF061806DC |
| Ball Nose Tree | F | 6.0mm | 1 | CBF082006DC |
| Ball Nose Tree | F | 6.0mm | 1 | CBF102006DC |
| Ball Nose Tree | F | 6.0mm | 1 | CBF122506DC |
| Pointed Tree | G | 6.0mm | 1 | CBG061806DC |
| Pointed Tree | G | 6.0mm | 1 | CBG102006DC |
| Pointed Tree | G | 6.0mm | 1 | CBG122506DC |
| Flame | H | 3.0mm | 1 | CBH030603DC |
| Flame | H | 6.0mm | 1 | CBH081906DC |
| Flame | H | 6.0mm | 1 | CBH102506DC |
| Flame | H | 6.0mm | 1 | CBH123206DC |
| Ball Nose Cone | L | 3.0mm | 1 | CBL031203DC |
| Ball Nose Cone | L | 6.0mm | 1 | CBL082206DC |
| Ball Nose Cone | L | 6.0mm | 1 | CBL122806DC |
| Cone | M | 6.0mm | 1 | CBM061806DC |
| Cone | M | 6.0mm | 1 | CBM122506DC |
